1 PCI Slot Computer – 12th Generation Intel Core CPU
$795.00
Computer with 1 PCI slot and 3 PCIe slots. With 12th Gen Intel Core CPU support, up to 64 GB of memory, a serial port and room for full length expansion cards.
Configure Your System: Choose from the available processor, memory, storage, operating system, and other options below. Also available in a 4U Rackmount chassis. If you require something not listed, such as a video card or other specialized hardware, contact us.
Assembly and Testing: Each computer is custom built to order and tested by Ram PC Systems before shipment.
| 1 PCI Slot 10th Gen Intel Specifications: | |
|---|---|

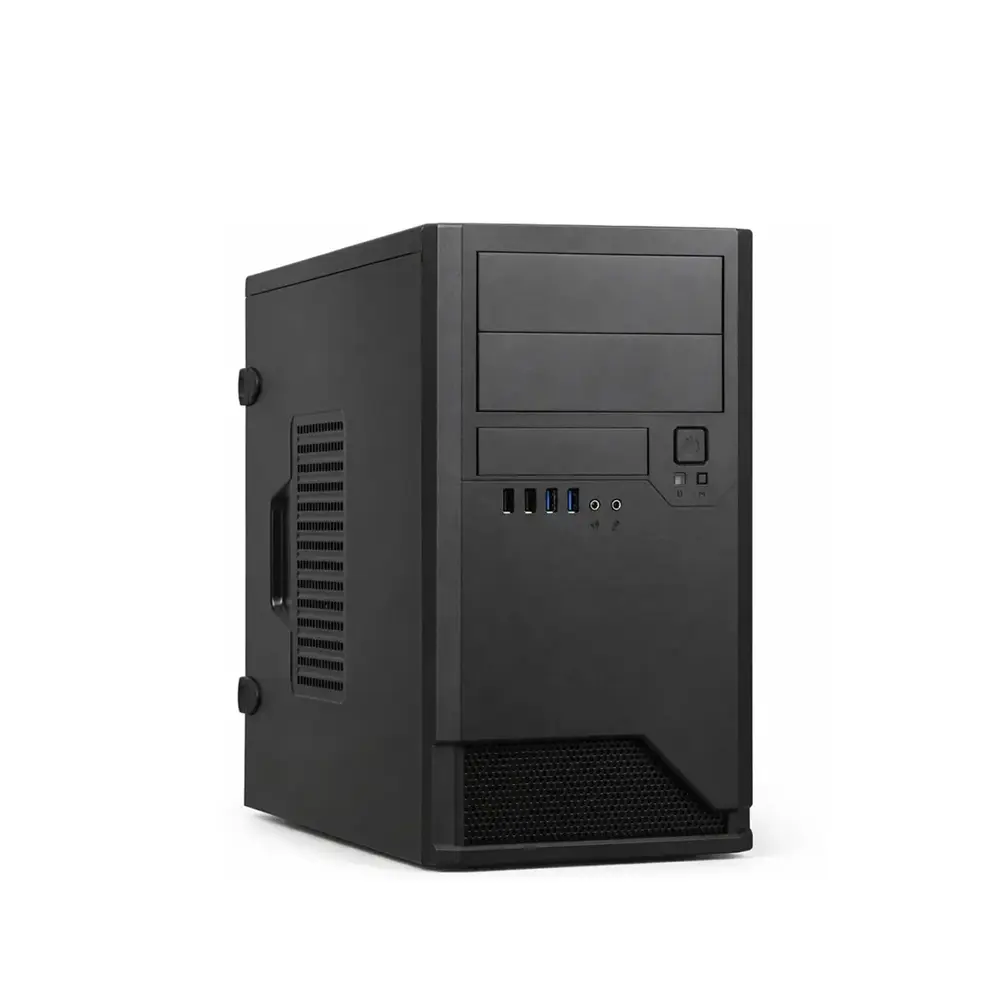

| Case Type | Mini-tower |
| Case Dimensions | 7" x 15" x 14" |

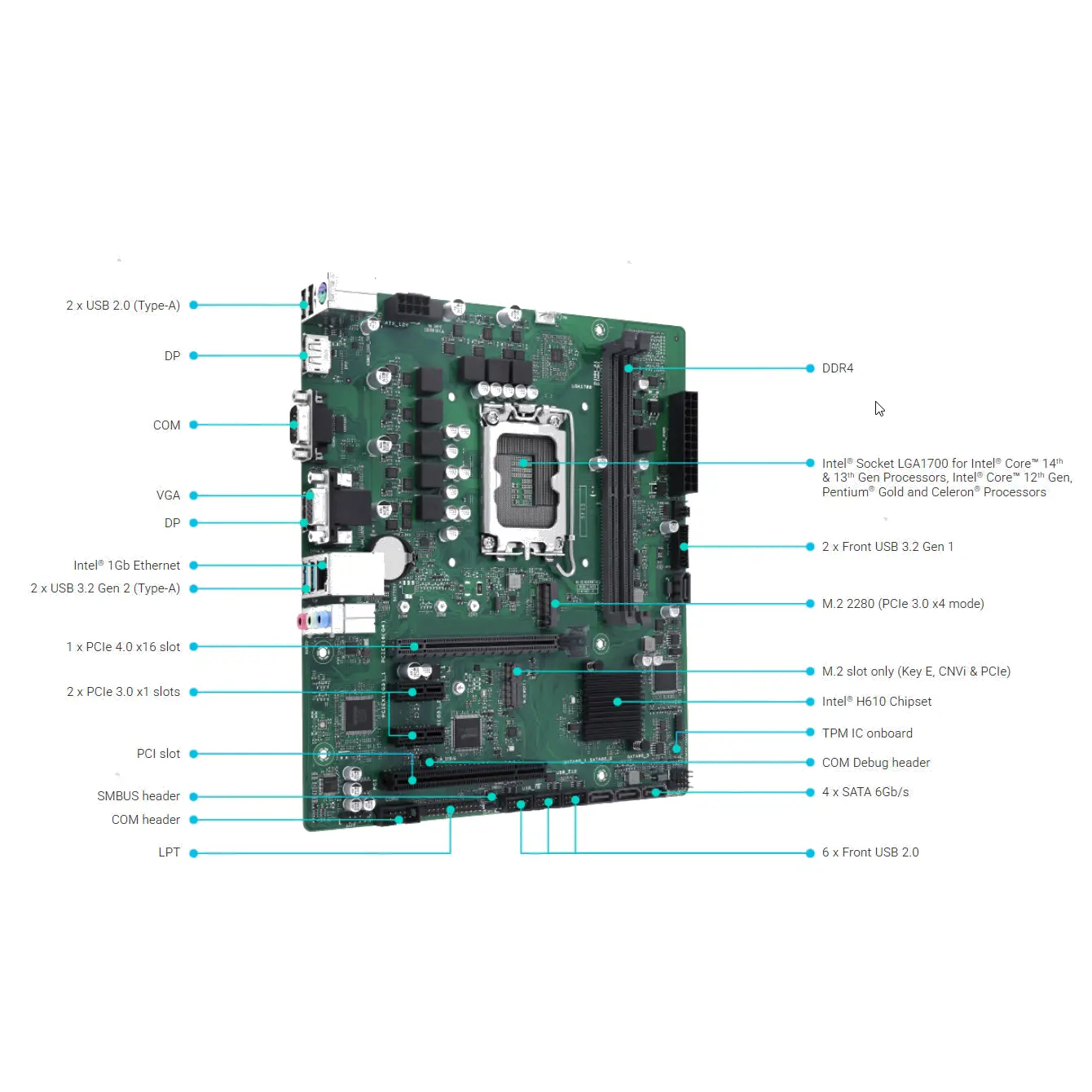

| Expansion Slots | 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x PCI |
| Processor Type | Intel Core i3 Supports 12th and 13th Gen core i3, core i5, core i7 and core i9 CPU |
| Memory | 8GB DDR4 Supports up to 64GB |
| Video | On board Intel HD Graphics Support |
| Audio | On board Realtek® 7.1-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking |
| Network Adapter | 1 x Intel® Gigabit Ethernet |
| Hard drive | 500 GB SSD |
| Optical Drive | DVDRW SATA |
| Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub VGA 2 x DisplayPort 1 x LAN (RJ45) port 2 x USB 3.2 Gen 2 Type-A 2 x USB 2.0 Type-A 3 x Audio jack(s) Internal headers available to add 1x Serial Port |
| Features | TPM 2.0 |
| Operating System | Supports Windows 10 64 Bit and Windows 11 Pro 64-bit |
| Warranty | 1 year |
Product Description
Computer with 1 PCI Slot for Legacy PCI Hardware

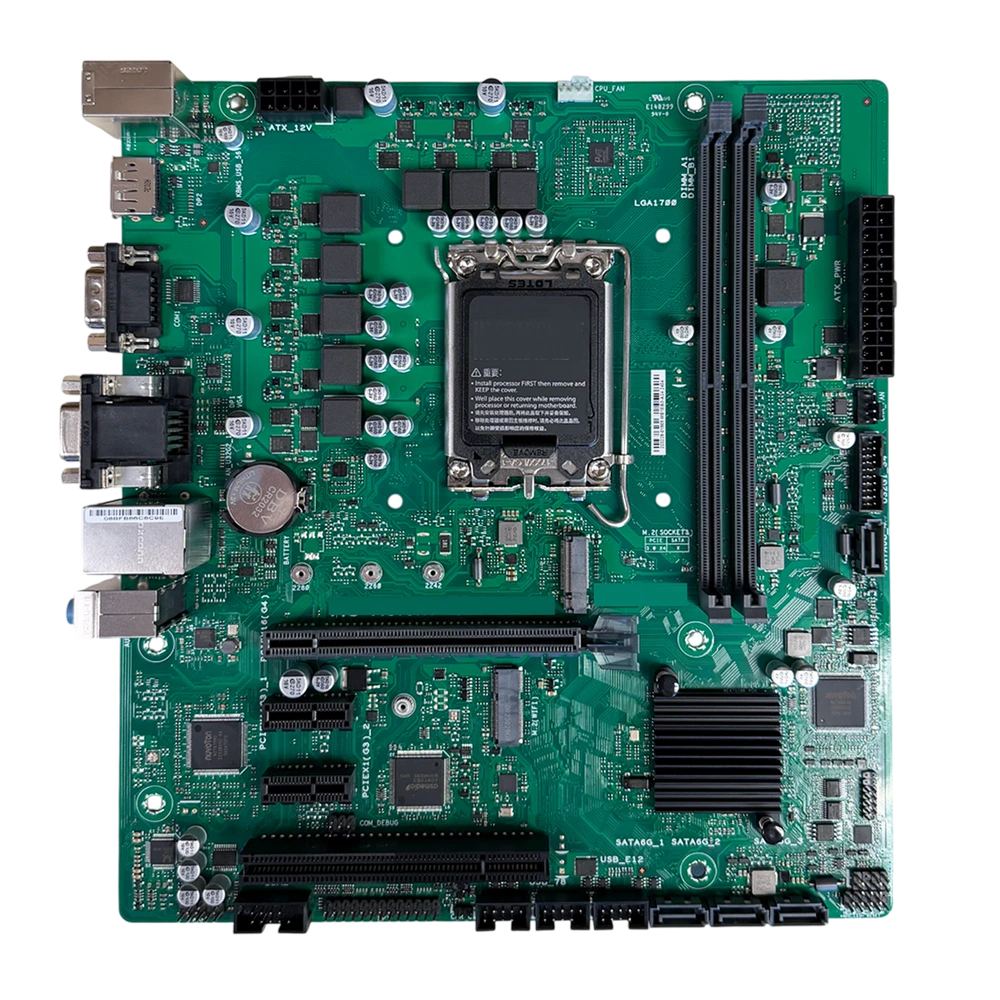

This computer with 1 PCI slot provides a modern platform for businesses, organizations, and universities that need to continue using legacy PCI expansion cards. The system includes 1 conventional PCI slot and 3 PCIe slots, allowing older PCI hardware and newer PCI Express devices to be used in the same computer.
12th Gen Intel Core Processor and Memory
Powered by a 12th Generation Intel Core processor, the system supports Core i3, i5, i7, and i9 CPUs and up to 64 GB of memory. Support for full-length expansion cards provides flexibility for specialized PCI hardware used in industrial, commercial, laboratory, and other legacy applications.
Keep Using Your Existing PCI Expansion Cards
Many specialized PCI cards remain in service long after newer computers have eliminated conventional PCI slots. This PCI slot computer provides a practical way to upgrade the computer while continuing to use compatible data acquisition, control, interface, communication, and other specialized PCI expansion cards.
Custom Configuration

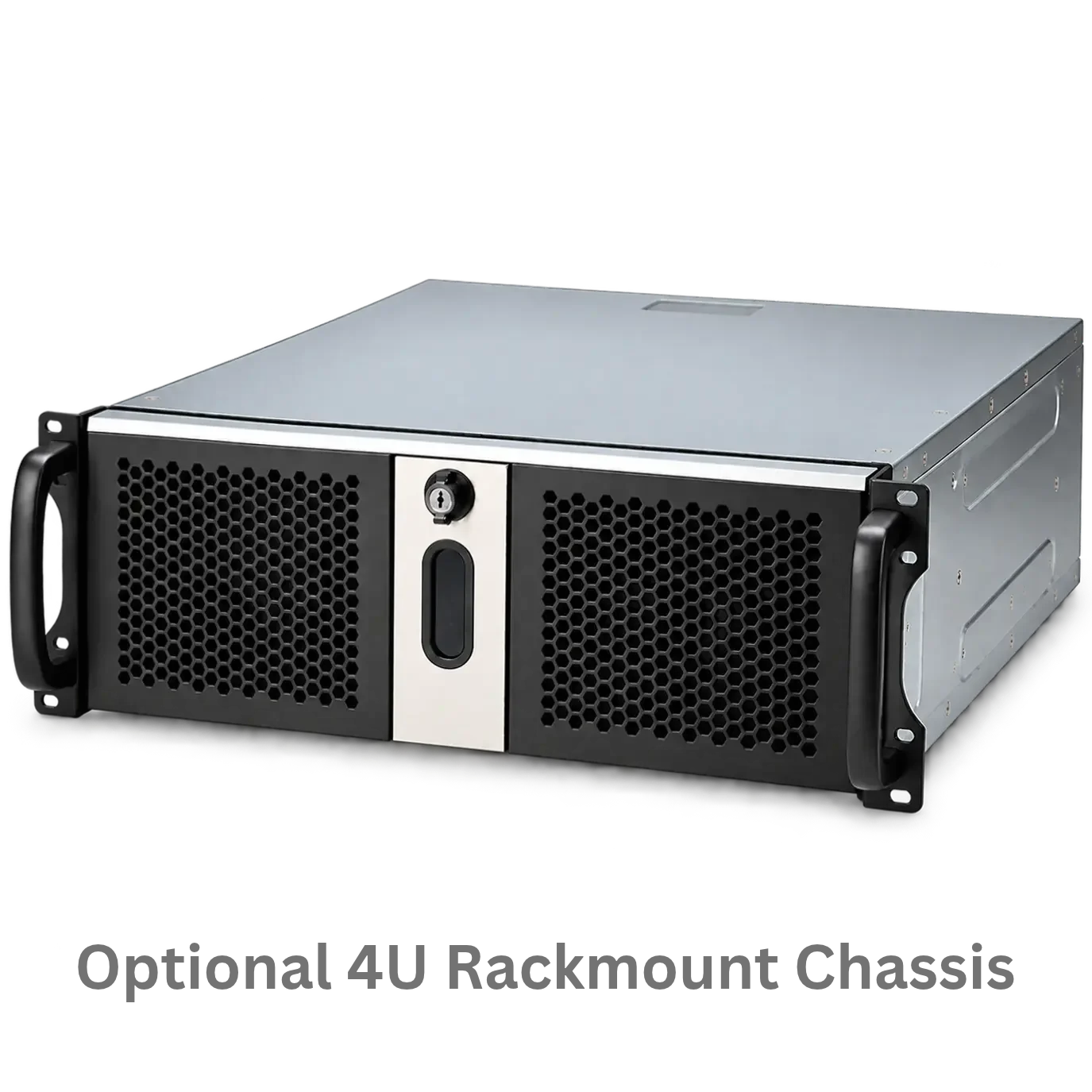

Configure the computer with the processor, memory, storage, operating system, and other options required for your application. A 4U rackmount chassis is also available. If you need a component or configuration that is not listed, contact Ram PC Systems for additional options.
