3 ISA Slot Computer – 4U Rack – Native ISA Support – Pentium 4
$1,575.00

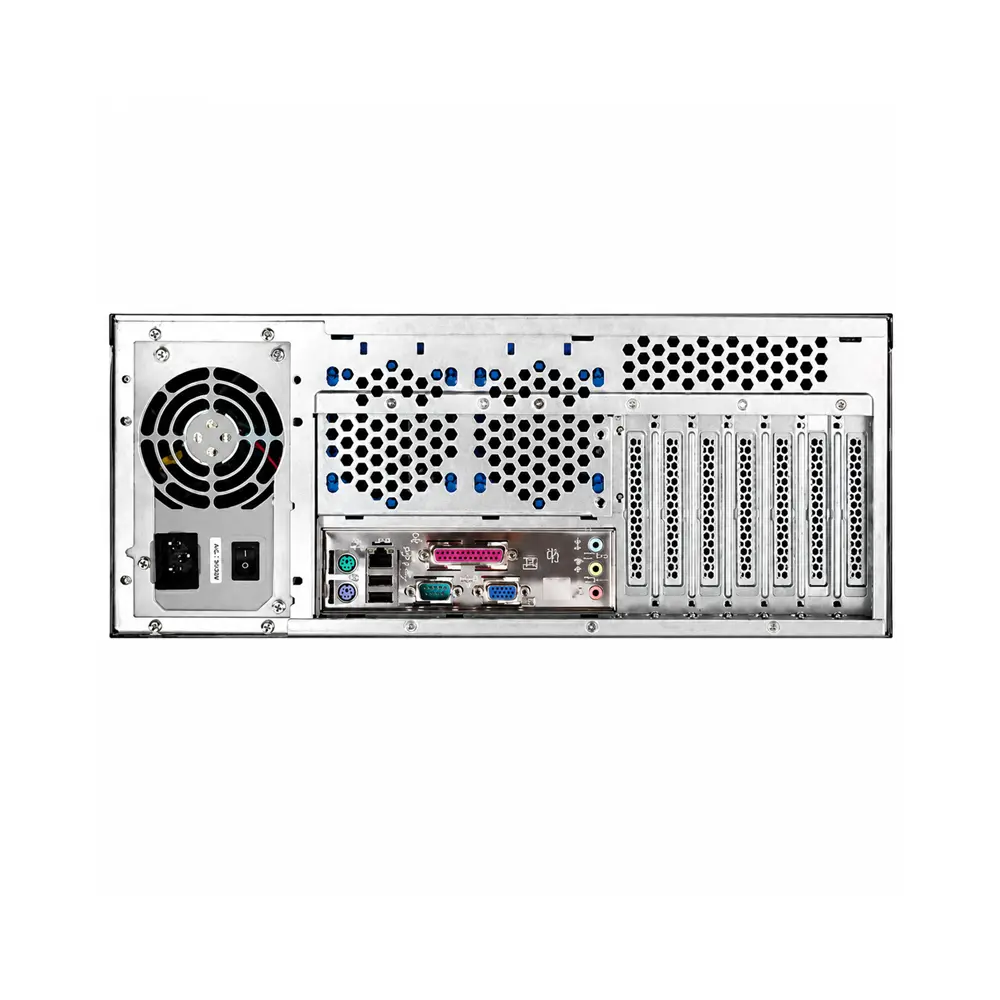

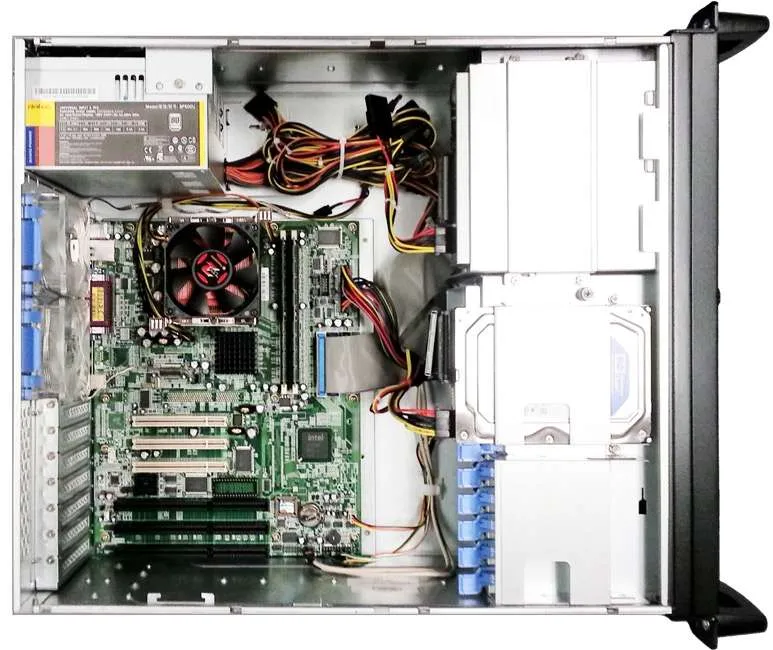

Computer with 3 ISA slots in a 4U rackmount chassis. With native ISA support, Pentium 4 processor support, PCI expansion slots, 1 serial port and room for full-length expansion cards.
Configure Your System: Choose from the available processor, memory, storage, OS and other options below. If you require something not listed, such as a video card, contact us.
Assembly and Testing: Each computer is custom built to order and tested by Ram PC Systems before shipment.
| System | |
|---|---|
| CPU | Socket 478 for Pentium® 4 / Celeron®, up to 3.06GHz |
| System Memory | 2x DDR DIMM, Max. 2GB |
| System Chipset | Intel® 845GV + ICH4, 400MHz/533MHz FSB |
| BIOS | Award |
| Watchdog Timer | 256 levels |
| SSD | DiskOnChip® |
| H/W Monitor | Yes |
| Expansion Slot | 3x PCI, 3x ISA |
Graphics | |
| VGA Controller | Intel® 845GV integrated VGA for CRT (Intel® Extreme Graphics) |
| VGA Memory | Max. shared memory - 96MB |
| Display Interface | D-Sub DE-15 VGA Connector |
LAN | |
| LAN Controller | Intel® ICH4 integrated LAN, 10/100Mbps |
| Connector | RJ-45 on board |
Multi I/O | |
| I/O Chipset | Winbond W83627H + W83877 2x IDE, 1x FDD, 1x KB, 1x Mouse, 3x RS-232, 1x RS-232/422/485, 1x LPT |
| USB | 2 ports on board Pin header for 2 ports (USB 2.0) |
| Audio | Built-in audio + AC97 codec |
| Others | IrDA |
Mechanical and | |
| Dimensions | 305mm x 244mm (12“ x 9.6“) |
| Max. Power Requirement | Pentium® 4 2.4GHz w/ 512MB DDR +5V: 0.65A +12V: 5.94A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Product Description
3 ISA Slot Computer for Legacy Hardware
The RamPC 4U Rack Mount 3 ISA Slot Computer is designed for industrial, commercial, and legacy applications that still depend on ISA expansion cards. It provides three ISA slots in a 4U rack mount chassis, allowing existing ISA hardware to remain in service without requiring costly replacement or redesign of specialized equipment.
This system is well suited for legacy control systems, data acquisition equipment, manufacturing applications, laboratory equipment, and other specialized hardware that requires ISA expansion.
Unlike modern computers that have eliminated ISA expansion entirely, this system uses an industrial-class motherboard with native ISA slots and is specifically configured for compatibility with legacy hardware.
Legacy Hardware and Operating System Support
The system can be configured for older operating systems required by many legacy applications and ISA devices. Hardware and operating system options can be selected based on the requirements of your existing ISA cards and software.
Built for Your Application
RamPC Systems builds each computer to order. Processor, memory, storage, operating system, and other configuration options can be selected to meet your application requirements.
If you are replacing an older industrial or business computer, contact us with the specifications of your existing system or ISA hardware and we can help determine the appropriate configuration.
