3 ISA Slot PC – Native ISA – Pentium 4 CPU
$1,195.00
Computer with 3 ISA slots in a Mid-tower chassis. With native ISA support, Pentium 4 processor support, PCI expansion slots, 1 serial port and room for full-length expansion cards.
Configure Your System: Choose from the available processor, memory, storage, OS and other options below. If you require something not listed, such as a video card, contact us.
Assembly and Testing: Each computer is custom built to order and tested by Ram PC Systems before shipment.
3 ISA Slot Computer for Legacy Hardware
This computer provides 3 ISA expansion slots for businesses and organizations that need to continue operating legacy ISA hardware and specialized expansion cards.
Built around an older-generation PC platform, this system is intended for applications where compatibility with legacy hardware and software is more important than modern computing performance. It is well suited for industrial equipment, laboratory systems, manufacturing applications, and other specialized systems that continue to rely on ISA expansion cards.
Each system is custom built and tested by Ram PC Systems before shipment.

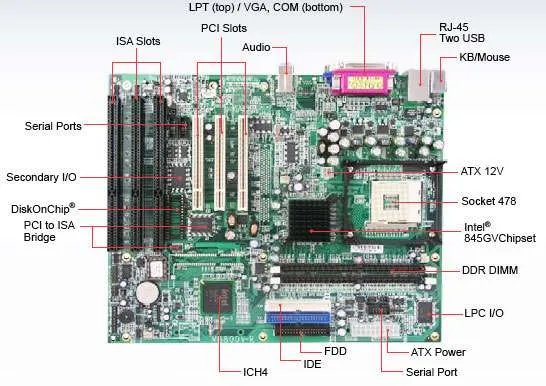

| System | |
|---|---|
| CPU | Socket 478 for Pentium® 4 / Celeron®, up to 3.06GHz |
| System Memory | 2x DDR DIMM, Max. 2GB |
| System Chipset | Intel® 845GV + ICH4, 400MHz/533MHz FSB |
| BIOS | Award |
| Watchdog Timer | 256 levels |
| SSD | DiskOnChip® |
| H/W Monitor | Yes |
| Expansion Slot | 3x PCI, 3x ISA |
Graphics | |
| VGA Controller | Intel® 845GV integrated VGA for CRT (Intel® Extreme Graphics) |
| VGA Memory | Max. shared memory - 96MB |
| Display Interface | D-Sub DE-15 VGA Connector |
LAN | |
| LAN Controller | Intel® ICH4 integrated LAN, 10/100Mbps |
| Connector | RJ-45 on board |
Multi I/O | |
| I/O Chipset | Winbond W83627H + W83877 2x IDE, 1x FDD, 1x KB, 1x Mouse, 3x RS-232, 1x RS-232/422/485, 1x LPT |
| USB | 2 ports on board Pin header for 2 ports (USB 2.0) |
| Audio | Built-in audio + AC97 codec |
| Others | IrDA |
Mechanical and | |
| Dimensions | 305mm x 244mm (12“ x 9.6“) |
| Max. Power Requirement | Pentium® 4 2.4GHz w/ 512MB DDR +5V: 0.65A +12V: 5.94A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
