PC with 2 ISA and 4 PCI Slots – 4U Rackmount – 4th Gen Intel Core CPU

$1,365.00

Computer with 2 ISA slots, 4 PCI slots and 2 PCIe slots. Powered by 4th Gen Intel Core CPU, up to 16GB of Ram and 2 serial ports. Supports Windows XP, Windows 7 and Windows 10.

Configure Your System:Choose from the available processor, memory, storage, operating system, and other options below. Also available in a Mid-tower chassis. Need something not listed, such as a video card or other specialized hardware?
Contact us for a custom configuration.

Assembly and Testing: Each computer is custom built to order and tested by Ram PC Systems before shipment.

View Motherboard Datasheet (PDF)

$
2 ISA Slot Specifications:
Case Type4U Chassis
Case Dimensions21" x 17" x 7"
Expansion Slots2 ISA, 4 PCI, 1 PCIe x16, 1 PCIe x4
ChipsetIntel H81
Processor TypeIntel Socket 1150
MemorySupports DDR3 1333/1600MHz up to 16GB
VideoOn board
AudioOn board
Network Adapter2 Intel Gigabyte
Hard driveSATA
Optical DriveDVDRW SATA

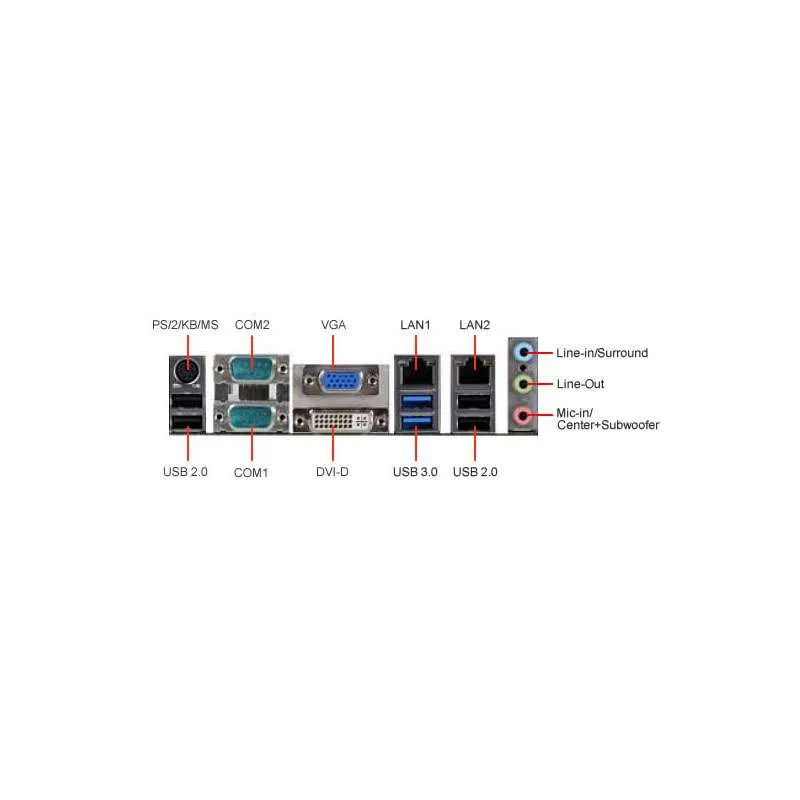

PortsUSB, Serial, VGA, DVI, internal header to add Parallel Port
Operating SystemSupports Windows XP, Windows 7, Windows 8, Windows 10
Warranty1 year

Product Description

This 4U rackmount computer provides 2 ISA slots, 4 conventional PCI slots and 2 PCIe slots for applications that require a combination of legacy and modern expansion hardware.

Built around a 4th Generation Intel Core platform, the system is designed for businesses, industrial facilities, laboratories and other organizations that need to continue using ISA or PCI expansion cards while replacing aging computer hardware.

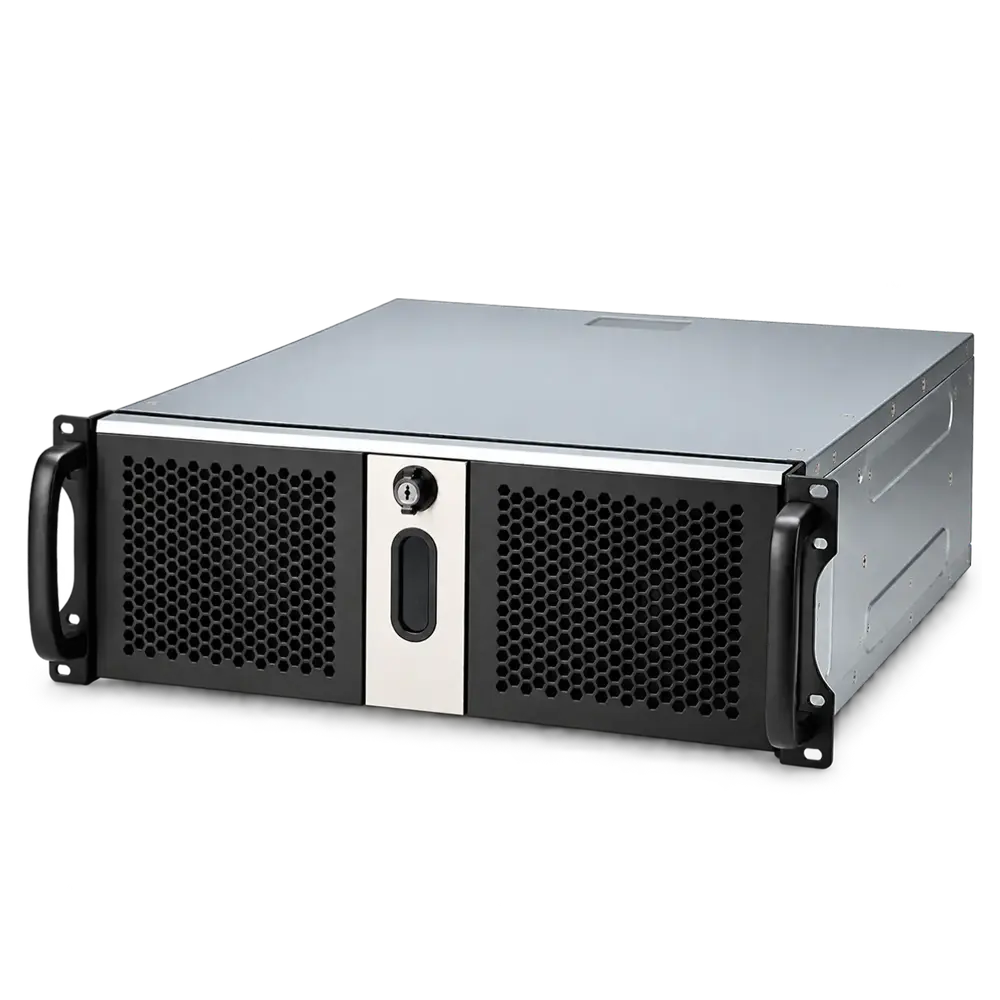

The 4U rackmount chassis provides room for full-length expansion cards and is well suited for equipment racks, test systems, machine-control applications, data acquisition hardware and other specialized installations.

Each system is custom built and tested by Ram PC Systems before shipment. Contact us if you need help determining compatibility with a particular ISA, PCI or PCIe card.
